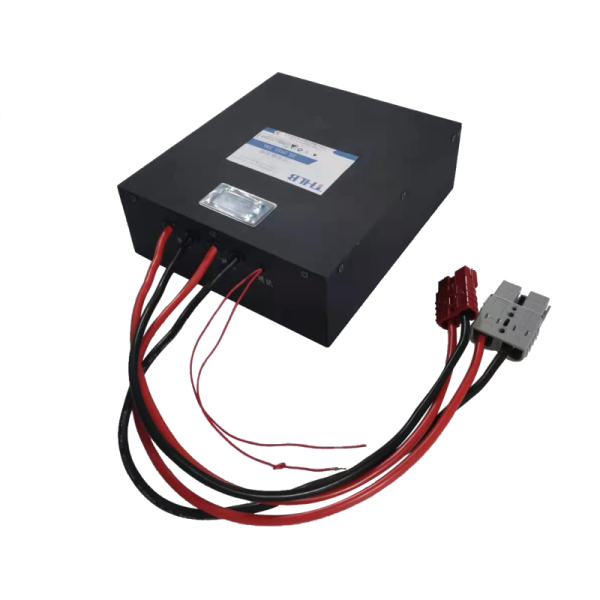

24V 12Ah LiFePO4 Lithium Battery Pack
High-performance rechargeable 24V 12Ah cylindrical lithium iron phosphate battery pack with PVC casing, designed for electric wheelchairs and various industrial applications.
Technical Specifications
| Nominal Voltage |
25.6V |
| Typical Capacity |
12Ah |
| Normal Discharge Current |
<20A |
| Discharge Cut-off Voltage |
20V |
| Charging Voltage |
28.8V |
| Charging Current |
7.2A |
| Charging Method |
CC/CV |
| Charging Cut-off Current |
0.01C |
| Discharging Inner Resistance |
<=50mΩ |
| Charge Temperature Range |
0℃～+45℃ |
| Discharge Temperature Range |
-20℃～+60℃ |
| Storage Temperature Range |
0℃～+40℃ (capacity 80%) |
| Recommended Long-term Storage |
15-25℃ |
| Operating Humidity |
RH<85% |
| Storage Humidity |
RH<50% |
| Battery Case Material |
PVC |
| Dimensions |
(172±1)mm × (72±1)mm × (152±1)mm |
When environment temperature exceeds 45℃, ensure proper ventilation and heat dissipation.
When environment humidity exceeds 85%, implement appropriate protection measures.
Easily oxidized components require sealed storage conditions.
Protection Features
- Overcharge protection
- Over discharge protection
- Temperature protection
- Balanced function
Cycle Life
Standard charge at 0.2C (A), rest 0.5-1h, discharge at 0.2C to cut-off voltage, rest 0.5-1h. Repeat for 1500 cycles with capacity retention rate >80%.
Manufacturer Profile
Shandong TianHan New Energy Technology Co., Ltd specializes in R&D, manufacturing, sales and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, and solar-wind energy storage systems.
Quality Certifications
We maintain all necessary industry certifications to ensure product quality and safety standards.
Packing & Delivery
